T-CON 07 brand logic board JR754R3HC5Y for SHARP LCD display panel
☆TV spare parts—T-CON.
T-CON (Timing Controller) is a key component of LCD TV and other displays.
☆ Original brand T-CON：BOE,CSOT,HKC,CHOT,AUO,Innolux,Panda,Sharp,LG,Samsung.
☆ Universal brand T-CON：WDX，07，NEMUS.
☆Support customized products.
☆ Main products:LCD TV screen,LCD display panel.
BOE,CSOT,HKC,CHOT,AUO,Innolux,Panda,Sharp,LG,Samsung.
☆We recommend high quality products,high performance products,high quality services.
最近浏览过的产品
-
LCD screen HV650QUB-E9D 120hz hight refresh rate display panel
-
T-CON 07 brand logic board HF860QUB-E20 for BOE LCD display panel
-
LCD screen display panel HV650QUB-F72 tv screen replacement
-
foam tape double-sided foam tape for pasting LCD display panel
-
LCD screen display panel HV650QUB-F90 led TV panel
-
LCD TV screen HKC PT650GS03-1 LED display panel replacement
Description
T-CON Introduction
A T-Con (Timing Control) board is a key part of LCD and LED TVs. It converts video signals from the main board. Then, it turns them into precise timing and control signals. Therefore, it acts like a “traffic controller” for screen pixels, instructing them when to turn on and off.
What the TCON Board Does:
First, it changes digital video from the main board into parallel signals. These match the LCD panel’s matrix.
It also provides accurate timing signals to activate specific pixels at the correct moments. As a result, it prevents flickering and keeps the image stable.
Additionally, it creates analog voltages like VGH and VGL. These control the liquid crystal transistors in the liquid crystal display.
Finally, it improves image quality using gamma and HDR correction.
How It Works:
The main board first sends a decoded video signal to the TCON board. This travels via a cable like the LVDS cable.
Inside the TCON, a microprocessor organize and time the data for the display’s rows and columns.
At the same time, A mini power supply and DC-DC converter within the TCON generate the specific voltages required for the LCD panel.
These signals are then sent to the panel. Thus, each pixel is controlled to form the image.
Location:
In most mid-to-large TVs, the T-Con is a separate board. However, some brands build it into the main board. This often makes repairs harder and more expensive.
Product Key Attributes
| Model name | JR754R3HC5Y | Matching screen | JR754R3HC5Y |
| Brand Name | 07 | Frame Rate | 60HZ |
| input signal | 4K ,3840(RGB)*2160 (UHD) | output signal | 4K ,3840(RGB)*2160 (UHD) |
Product Detail Display

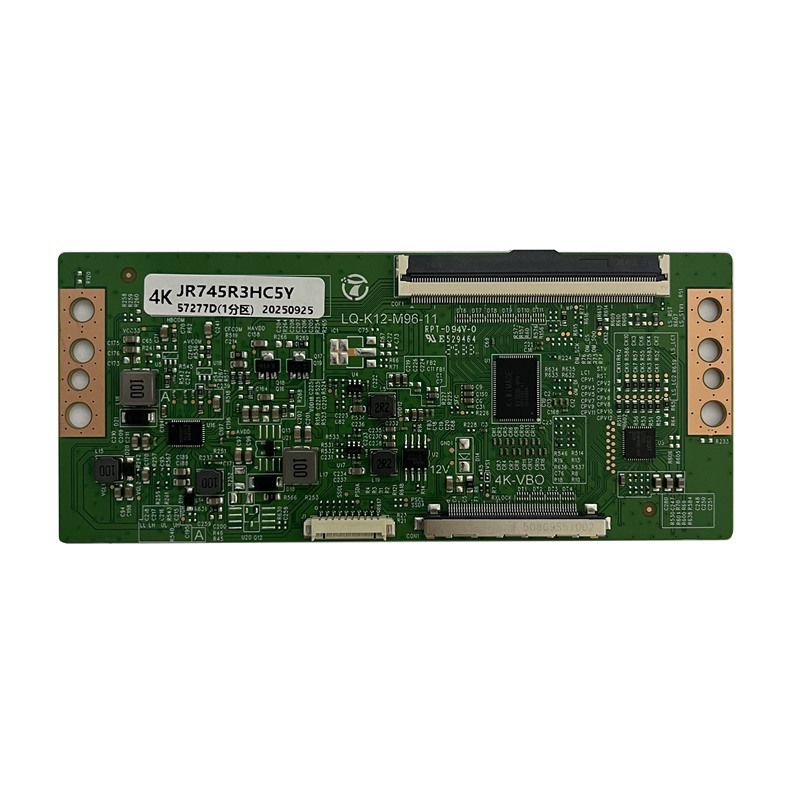

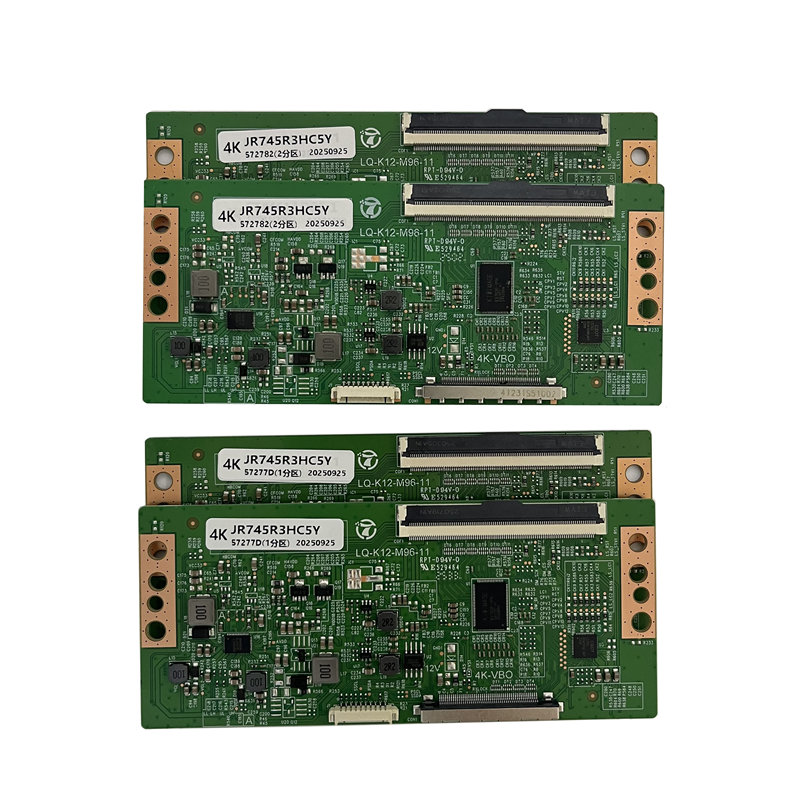

The above picture shows the details of this product .If you are interested in this product or know more, please feel free to contact us.
